Home > products > Cast Film Production Line > POE Polyethylene Polymer Cast Film Machines Extrusion Process 150kg h

POE Polyethylene Polymer Cast Film Machines Extrusion Process 150kg h

Product Details

Place of Origin: China

Brand Name: DaLi

Model Number: DL-2100 cast film extrusion machine/ production line

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 100000--180000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

POE Cast Extrusion

,

POE Polyethylene Cast Film Extrusion

,

POE Polyethylene film casting polymer

Certification:
CE
Type:
Full Automatic Casting Film Extrusion Production Line
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Material:
Granule
Power(w):
185KW
Screw Design:
Single Screw Extruder
Type Of Winding:
Automatic Winding Section
Thickness:
0.015mm--0.1mm
Weight:
12.5T
Dimension(l*w*h):
12mx4.5mx3.5m
Liner Meachinical Speed:
30--100m/min
Certification:
CE
Type:
Full Automatic Casting Film Extrusion Production Line
Plastic Processed:
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Application:
Sheet/ Film
Material:
Granule
Power(w):
185KW
Screw Design:
Single Screw Extruder
Type Of Winding:
Automatic Winding Section
Thickness:
0.015mm--0.1mm
Weight:
12.5T
Dimension(l*w*h):
12mx4.5mx3.5m
Liner Meachinical Speed:
30--100m/min
POE Polyethylene Polymer Cast Film Machines Extrusion Process 150kg h

PLC control ,tension control regulator, automatic winding change casting film machine for TPE/CPE hand glove

Full automatic Casting  film extrusion Machine

  • Overal view of the production line

    Comparing with the semi automatic casting film machine, this auotaomtaic series adopts a tensile unit ,it is capable of producing breathable waterproof film.This high-speed production line can be equipped with online slitting parts and high-speed duplex automatic winding parts.This whole machine is with high degree of integration and automation.When the producing speed is up to 100m/min or more,this machine can reduce 25% power cost comparing with normal similar machines under the same output

  • Full detaied of specifcations:



Material

CPE/TPE



Working width

1800mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ120×35:1 X 1
T die width 2100mm
Roller surface length 2100mm
Winding Diameter Φ500
Power supply Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz
Mechanical speed: 30-100m/min
Extrusion capacity(Maximum) 100~150kg/h(varies with material)



Installation power

About 160kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12M; W=4.5m; H=3.5m

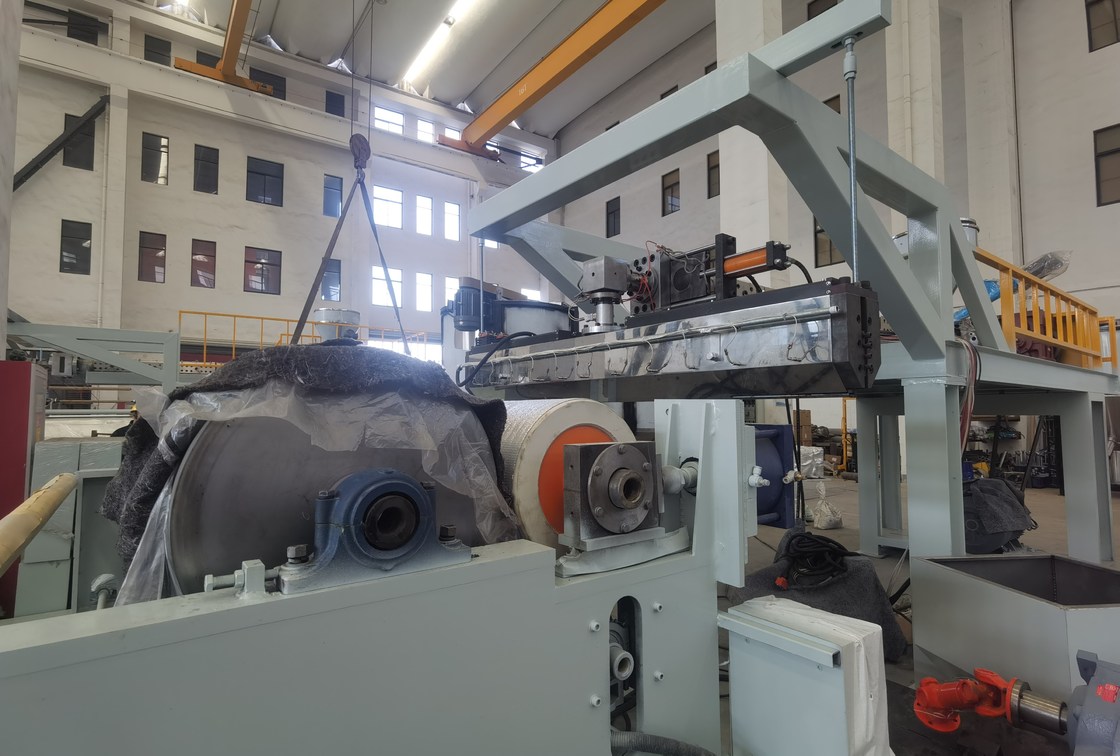

Scene of assmebly workshop



POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 0



 POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 1

  • Showcase of the assmebly workshop

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 2





  • Aplication of the products

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 3

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.





POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 4

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 5

Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 6

Certification

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 7



Scenarions of busineess negotiation



POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 8

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 9



Our Client representatives:



POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 10

POE Polyethylene Polymer Cast Film Machines Extrusion Process  150kg h 11

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
